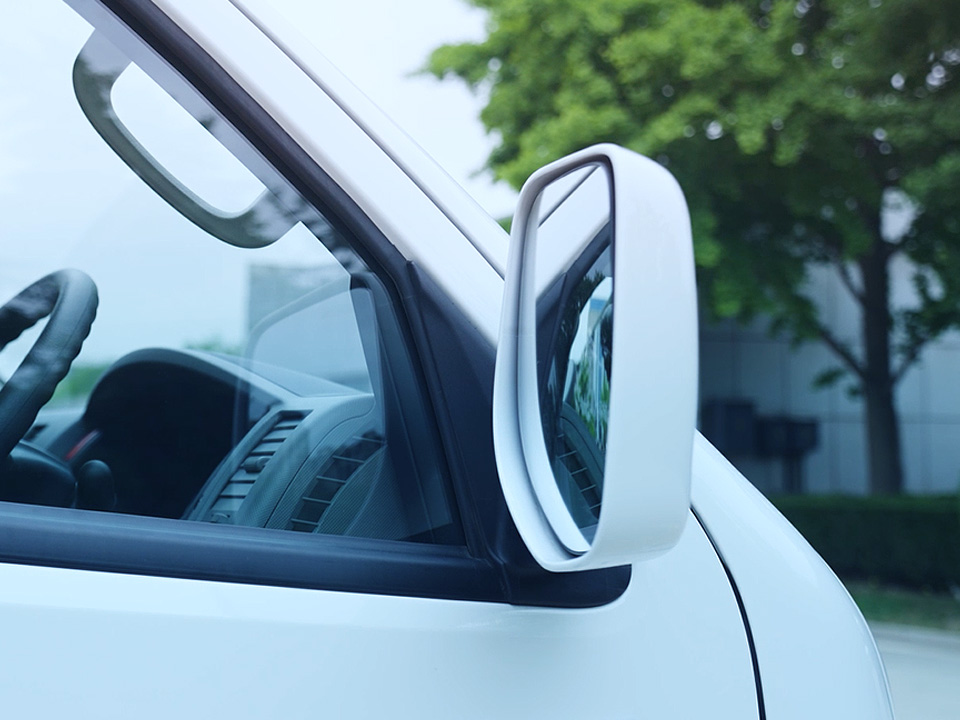

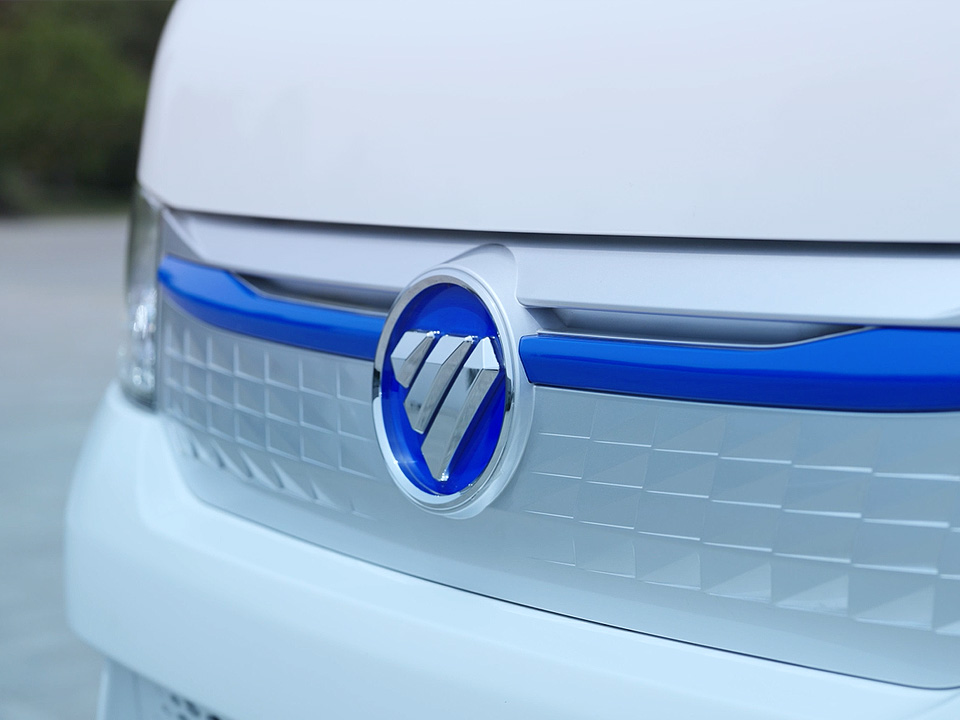

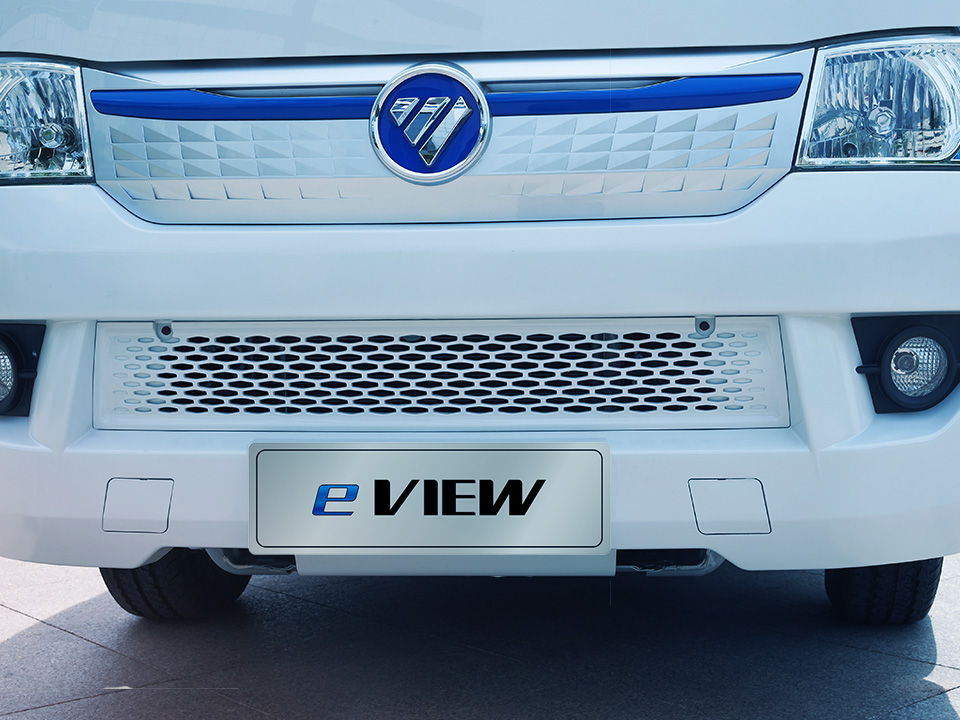

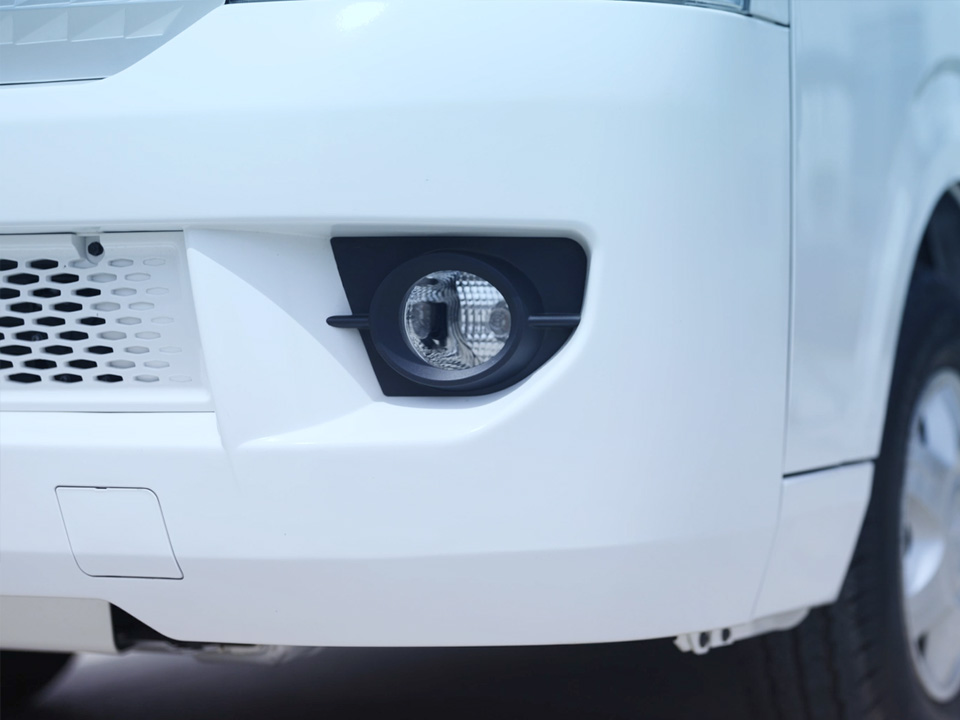

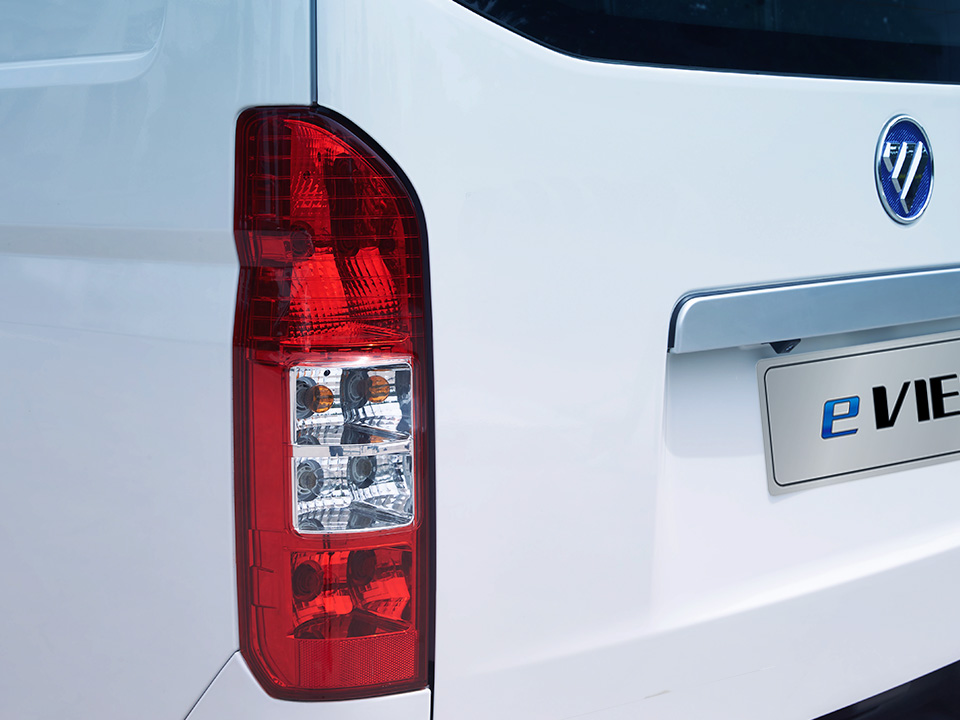

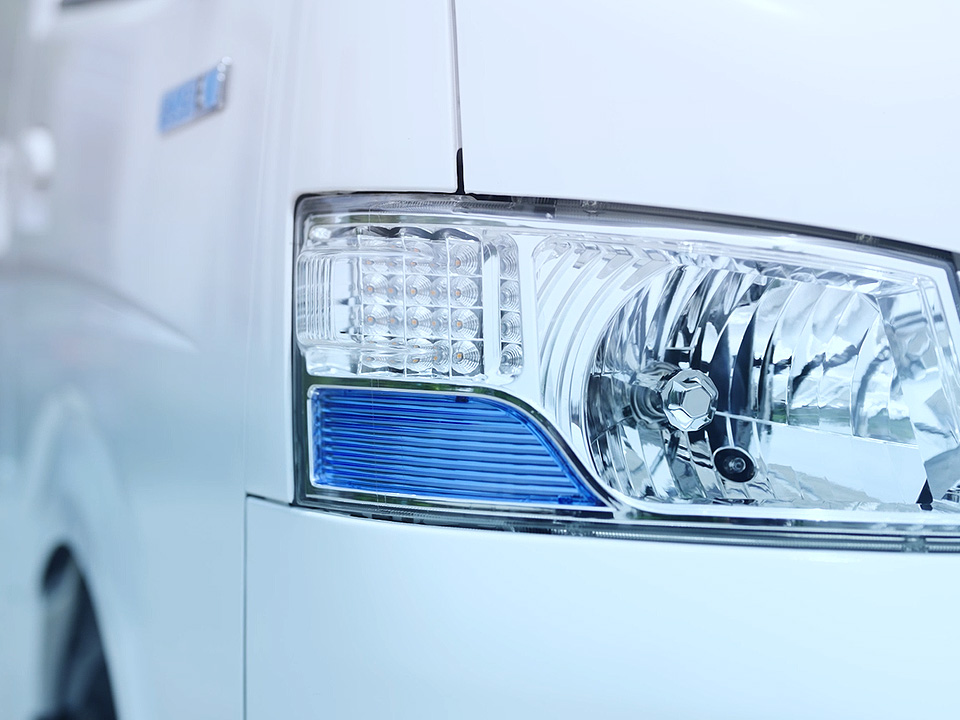

Featuring brilliant diamond headlights, a sharp blue flying grille trim, and an ultra-high penetration front fog lamp. The rearview mirror in body color and the integrated tail lamp add to the visual allure.
Moreover, with a high roof reaching 2280 mm, eVIEW seamlessly combines elegance and functionality for an unparalleled driving experience.

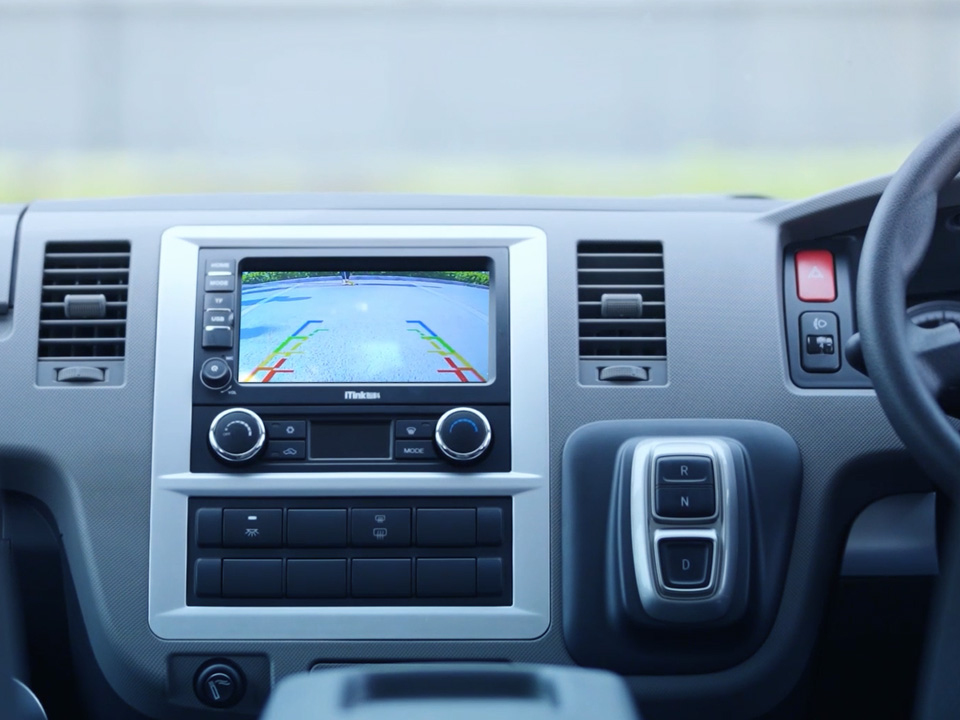

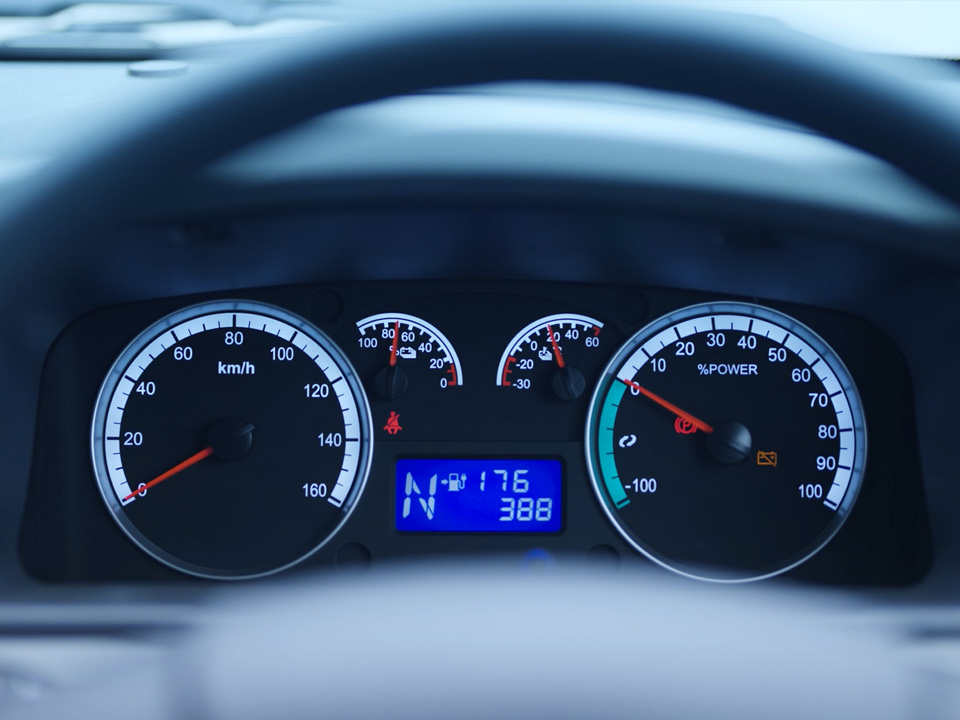

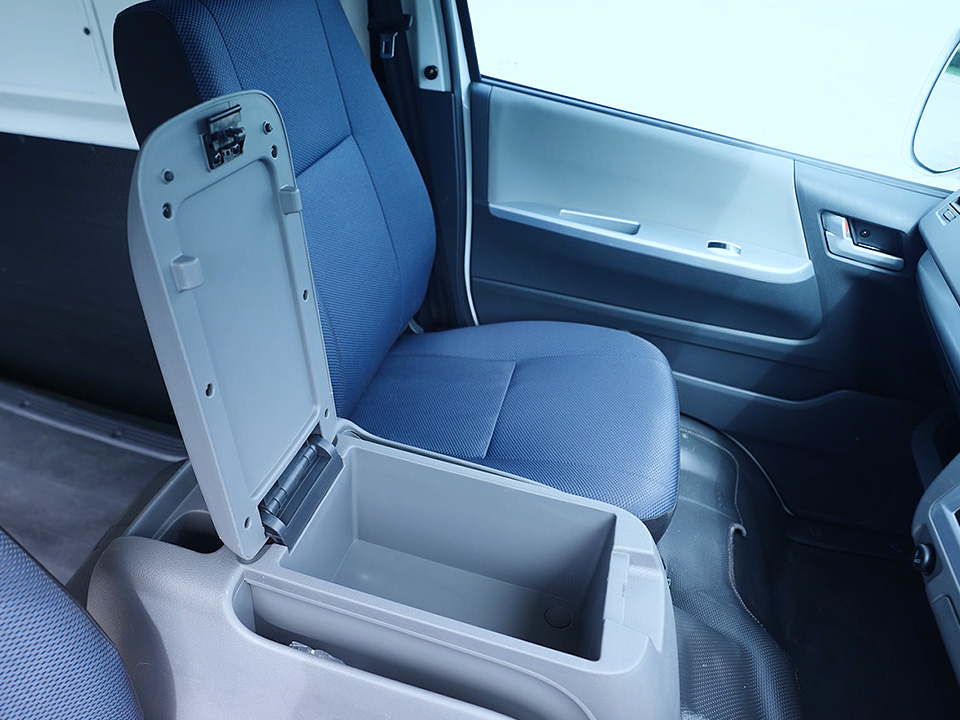

Step into luxury with the eVIEW Van's overall black interior adorned with gray decorative strips, offering a delicate and beautiful style. The double ring instrument panel, on-board multimedia with a reversing camera, central control door lock, auto down power windows, button-type gear shift, and AC power supply with USB interface exemplify the perfect blend of style and convenience.
| Discover the eVIEW's exceptional power capabilities with a CATL battery featuring 140Wh/kg energy density, 39 kW rated power, and a peak torque of 290 Nm. Benefit from both DC and AC charging options for enhanced flexibility.

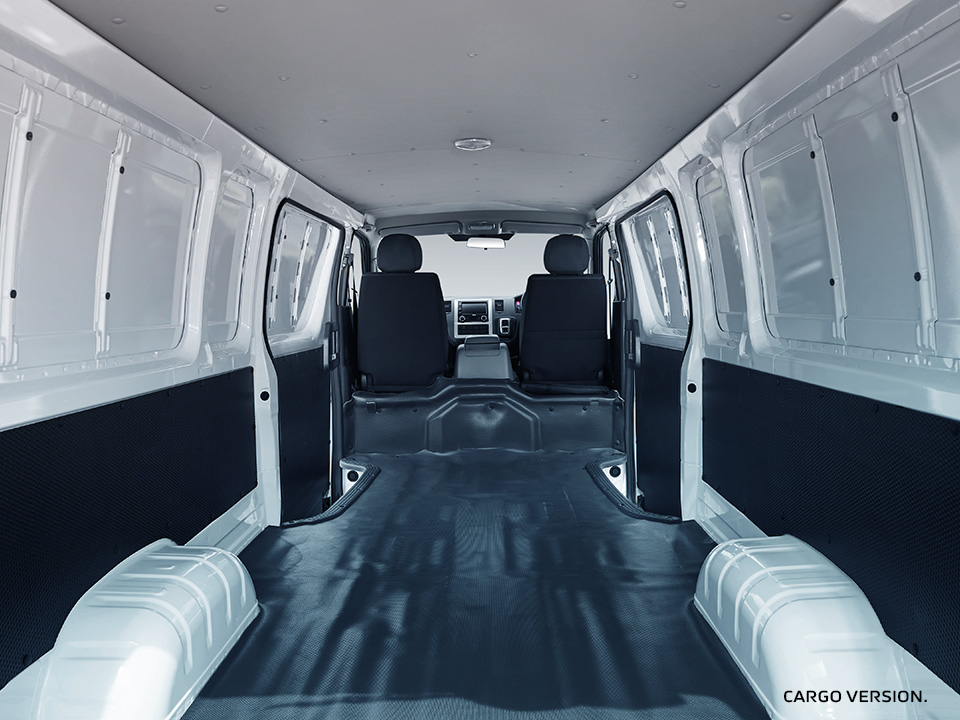

| Experience unmatched cargo capabilities with the eVIEW, boasting a maximum volume of 7m³ and an impressive load capacity of up to 1.2t—surpassing competitors in its class. The eccentric beam-type rear axle, drum brake, and parking cable ensure stronger bearing capacity. Enjoy convenient loading and unloading with two sliding doors on both sides and the option for a rear step for easy access.

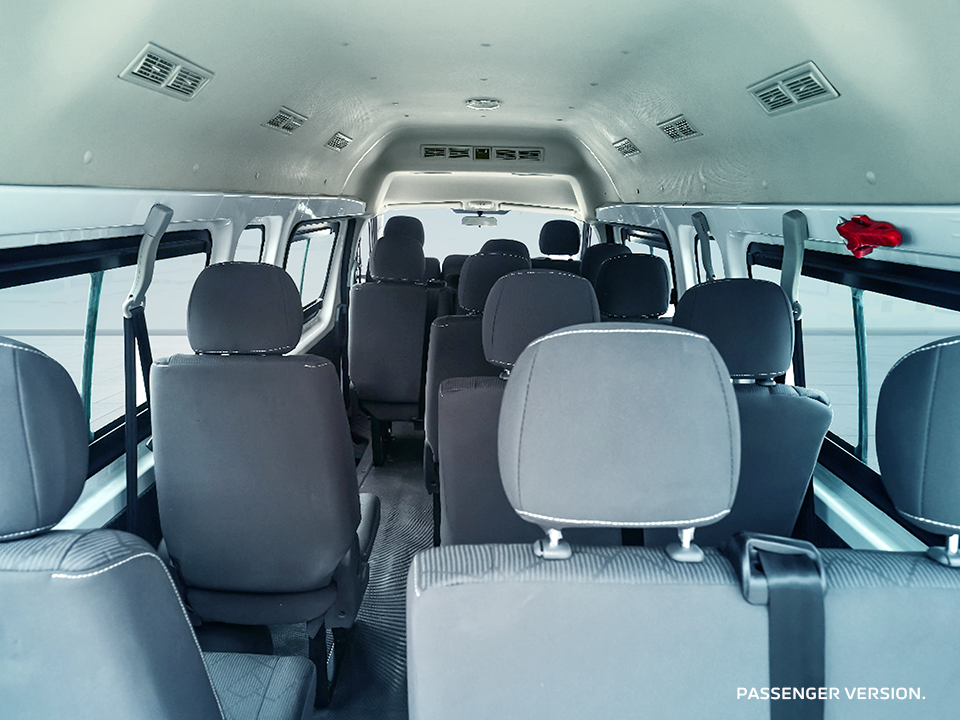

| With the height of 2280 mm, FOTON eVIEW has more space for your business of passenger transportation. 15-16 passengers layout for your choice.
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Vehicle type | Passenger transportation | Freight | |
| Emission level | BEV | BEV | BEV |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Model | FTTBP130B | FTTBP130B | FTTB039B |
| Rated Power/Peak Power (Kw/rpm) | 60/130 | 60/130 | 39/85 |
| Torque (N·m/rpm) | 110/330 | 110/330 | 135/290 |
| Rotational speed (r/min) | 5210/12000 | 5210/12000 | 2800/7000 |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| PACK Energy (kW·h) | 53.58 | 53.58 | 50.23 |
| Type | LFP | LFP | LFP |
| Manufacturers | CATL | CATL | CATL |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|

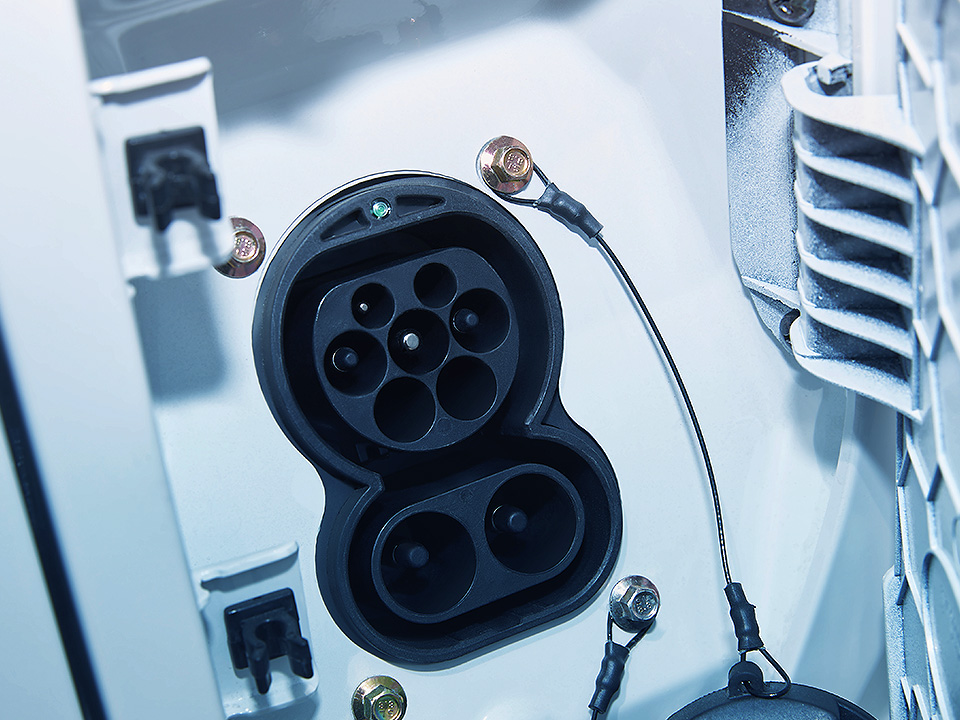

| Charging port form | AC and DC | AC and DC | AC and DC |
| Charging port standard | CCS2 | CCS2 | CCS2 |
| Charging port location | Right | Right | Right |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| L x W x H (mm) | 5320×1695×2280 | 5320×1695×2280 | 5320×1695×1990 |
| Wheelbase (mm) | 3050.0 | 3050.0 | 3050.0 |
| Kerb weight (kg) | 2180.0 | 2160.0 | ≤2000 (Practical weighing) |
| GVW (kg) | 3400.0 | 3400.0 | |
| Max. spped (km/h) | 100.0 | 100.0 | 100.0 |
| Min. turning diameter (m) | 12.5 | 12.5 | |
| Min. ground clearance (mm) | 180.0 | 180.0 | |
| Driving range (km):CLTC-C (km) | 266.0 | 266.0 | |
| Driving range (km):WLTC/WLTP (km) | 224.0 | 224.0 | |
| Max. grade ability(%) | 30.0 | 30.0 | |
| Wheelbase - Vehicle body | Long axis high roof | Long axis high roof | Long axis high roof |
| Back door form | Lift up door | Lift up door | Lift up door |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Seat arrangement | 16 (including middle seat) | 15 (including middle seat) | 2 |
| Seat layout | 3+3+3(2+1)+3(2+1)+4 | 3+3+2+3(2+1)+4 | |
| Driver's seat form | Skeleton type | Skeleton type | |
| Driver's seat Adjustment method | Manual | Manual | |
| Driver's seat Headrest | 2ways(Up and Down) | 2ways(Up and Down) | |
| Driver's seat Headrest Quantity | 1 | 1 | |
| Co-driver's seat Seat form | Skeleton type | Skeleton type | |
| Co-driver's seat Adjustment method | Manual | Manual | |
| Co-driver's seat Headrest | 2ways(Up and Down) | 2ways(Up and Down) | |
| Co-driver's seat Headrest Quantity | 1 | 1 |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Brake type | Front disc back disc | Front disc back disc | Front disc back disc |
| Braking force regulator | ABS+EBD | ABS+EBD | |
| EPB+Autohold | Right | Right | Right |
| Ramp assistance + steep slope | • | ||
| Slow descent | • |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Form of assistance | Electric assist | Electric assist | |
| Energy-absorbing steering column | • | • | |
| Steering wheel material | PU | PU | |
| Adjustable angle steering wheel | • | • |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Tire specifications | 195/75R16LT | 195/75R16LT | |
| Aluminum alloy rim + axle head cover | ○ | ○ | |
| Steel wheel + mask | ○ | ○ | |
| Steel wheel without mask | • | • | |
| Spare tire (steel wheel) | x | x |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Air Conditioner | Electric | Electric | |
| Front AC | • | • | |
| Rear AC | • | • | |
| Front heater | • | • | |
| Rear heater | x | x | |
| Each row has an independent air outlet | • | • | |
| Double air duct | • | • | |
| Negative ion air purifier | x | x | |
| Rear passenger AC | x | x |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| MP5+ reversing camera+Bluetooth | ○ | ○ | |
| MP3+AUX+USB | • | • | |
| DVD (noloader) + GPS remote positioning + reversing image | x | x | |
| Driving recorder | x | x | |
| Cruise control system | x | x | |
| T-BOX | x | x | |
| Engine electronic anti-theft system | x | x | |
| Front collision avoidance radar | x | x | |
| Reversing radar (buzzer) | • | • | |
| Number of speakers | 4.0 | 4.0 | |
| High pitched electric horn | High pitch | High pitch |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Headlamp type | Halogen lamp | Halogen lamp | |
| Headlamp illumination height adjustment (electric adjustment) | • | • | |
| Front fog lights | x | x | |
| Daytime running lights | • | • | |
| High brake lights | • | • | |

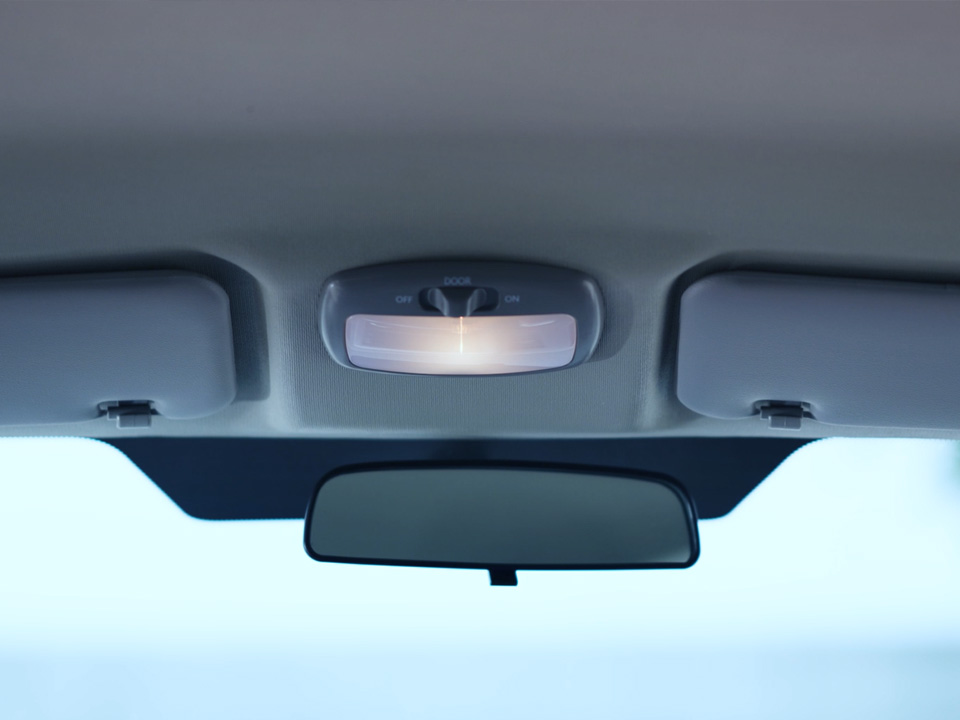

| Reading light | • | • | |
| Rear door lights | x | x | |
| Step lights | x | x | |
| Reminder function for interior lights not turned off | x | x |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Top escape | x | x | |
| Airbag for main driver | x | x | |
| Airbag for co-driver | x | x | |
| E-Call | x | x |
| BJ6539EVBAR | BJ6539EVBAR1 | BJ5039XXYEVR1 | |
|---|---|---|---|
| Combination instrument (Segment code screen) | • | • | |
| Combination instrument (3.5 inch TFT color screen) | x | x |
