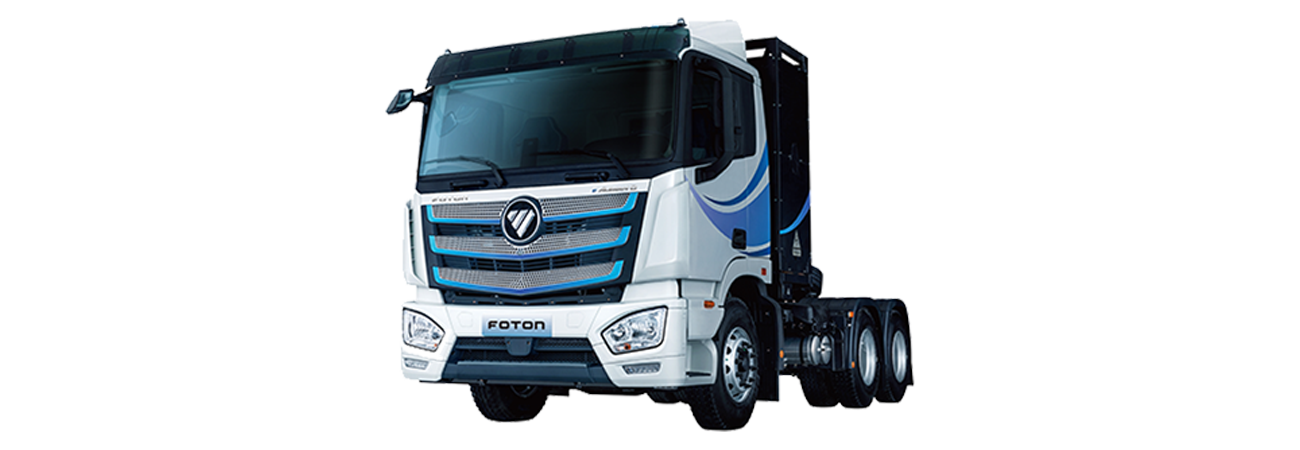

eAUMAN TRACTOR

CONFIGURATIONS

Driven type 6x4
L x W x H (mm) 7130x2550x3375/3525
Curb weight (kg) 10900.0
Total weight (kg) 49000.0
Saddle model/capacity 50#
Wheelbase (mm) 3300+1350
Front/rear suspension (mm) 1450/1030
Min. turning radius (m) 16.4
Full load max. speed (km/h) 89.0
Gradeability (%) >20%
Charge time (20% to 95%) 1h-1.5h
Range (km) 200 km (at 40 km/h)
Battery type CATL 282 KWh, C box*8
Nominam voltage capacity (V,Ah) 618, 486
Cooling type Liquid cooling
Heating type Heated by heating film
Motor model FTTB220
Rated/peak power (kW) 220/360
Rated/peak speed (rpm) 1401/3400
Rated/peak torque (Nm) 1500/2100

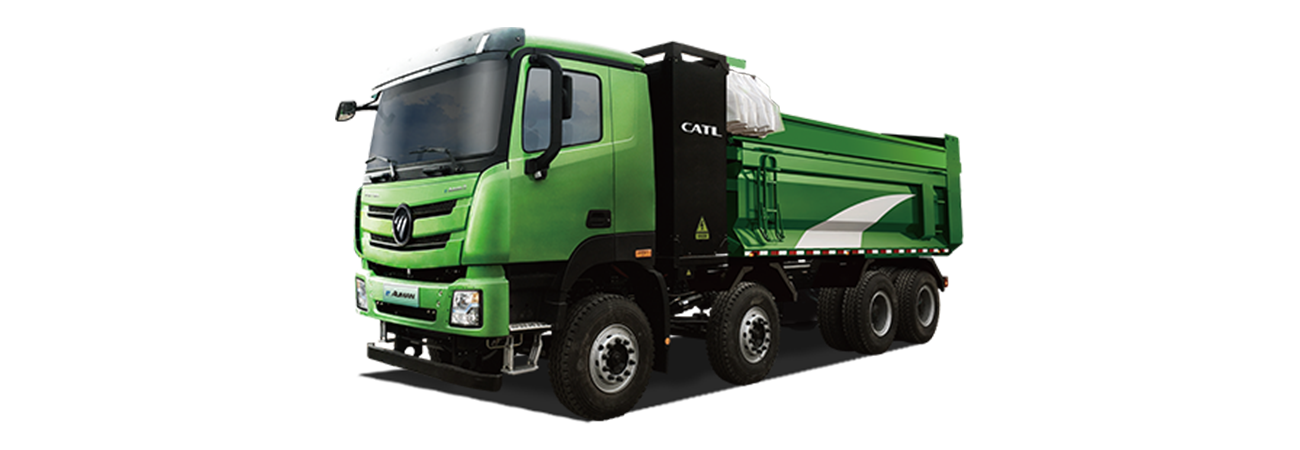

eAUMAN DUMPER

CONFIGURATIONS

Driven type 8x4
L x W x H (mm) 9260/9460/9660*2490*3550
Curb weight (kg) 18300.0
Total weight (kg) 31000.0
Saddle model/capacity /
Wheelbase (mm) 2100+2750+1400
Front/rear suspension (mm) 1560/1760/1960
Min. turning radius (m) 20.5
Full load max. speed (km/h) 89.0
Gradeability (%) 0.3
Charge time (20% to 95%) 1h-1.5h
Range (km) 190 km (at 40 km/h)
Container size 5.8 m³(maximum)
Battery type CATL 282 KWh, C box*8
Nominam voltage capacity (V,Ah) 618, 456
Cooling type Liquid cooling
Heating type Heated by heating film
Motor model FTTB220
Rated/peak power (kW) 220/360
Rated/peak speed (rpm) 1401/3400
Rated/peak torque (Nm) 1500/2100

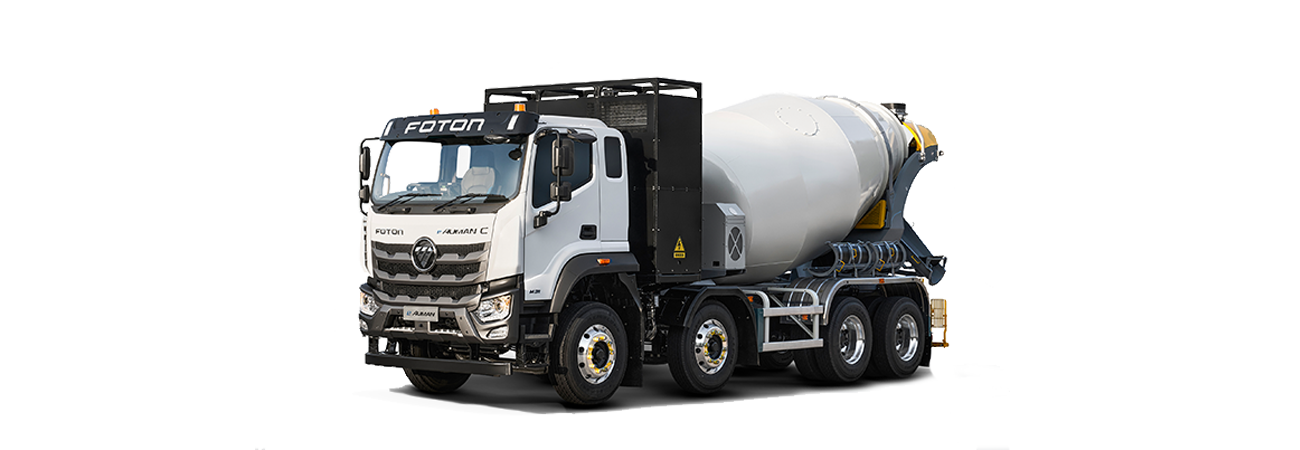

eAUMAN MIXER

CONFIGURATIONS

Driven type 8x4
L x W x H (mm) 9260/9460/9660*2490*3550
GVW (kg) 28000-35000
Kerb weight (kg) 10560.0
Max. gradeability 0.25
Battery type CATL
Cell type Lithium ion phosphate
Battery Capacity (kWh) 281.92
Nominal Voltage(V) 618.24
Charging Time (h) 1-1.5
Driving Range (km) (at 40km/h) 130-140
Motor model PMSM
Peak power/speed/torque (kW/r/min/N.m) 400/3400/2500
Rated power/speed/torque (kW/r/min/N.m) 260/1910/1300
Cooling Type Liquid cooling
Intelligent System Around view monitor+Reverse image
Electrical Equipment MP5+USB+FM
Electronic Safety System EBS+ESC+HAS
